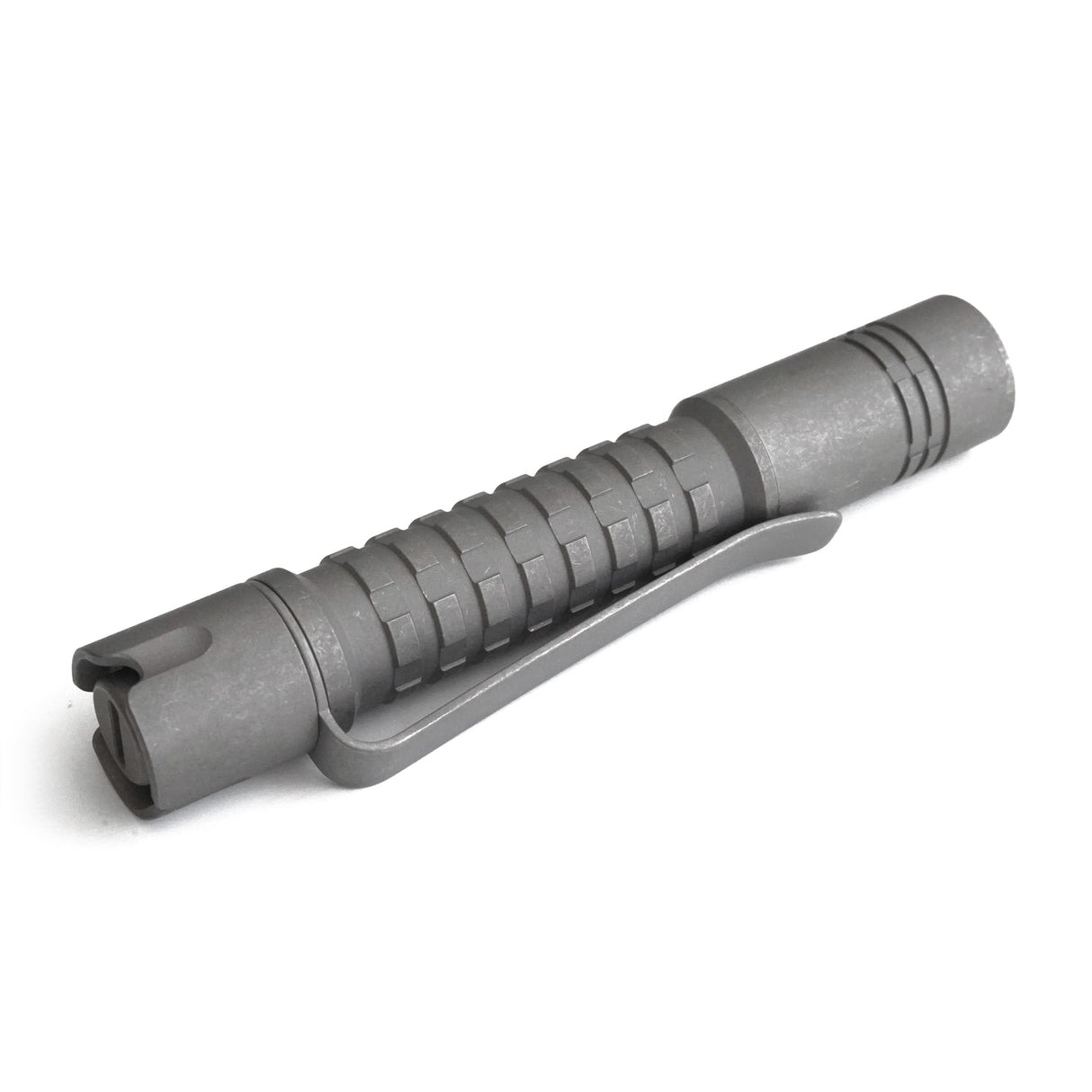

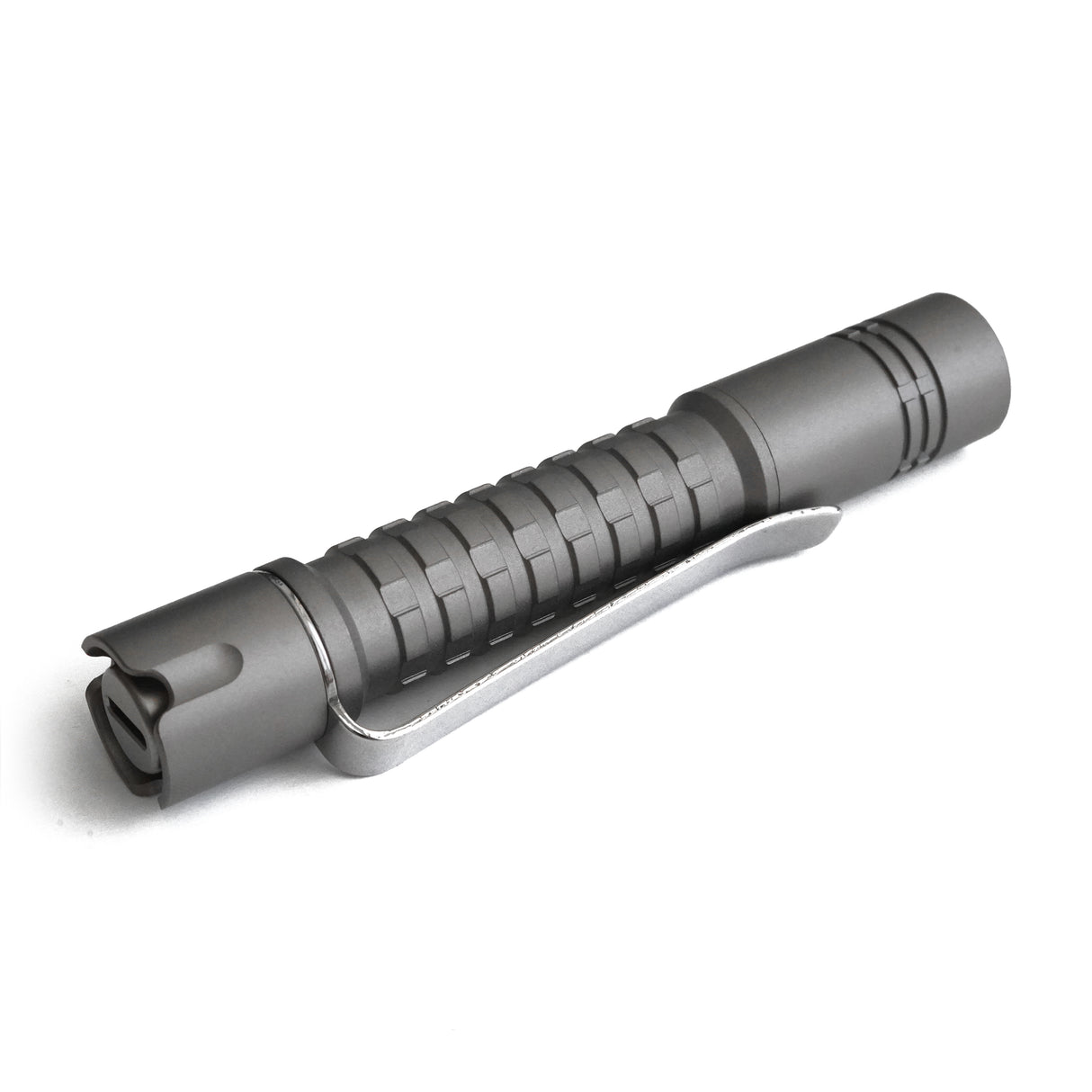

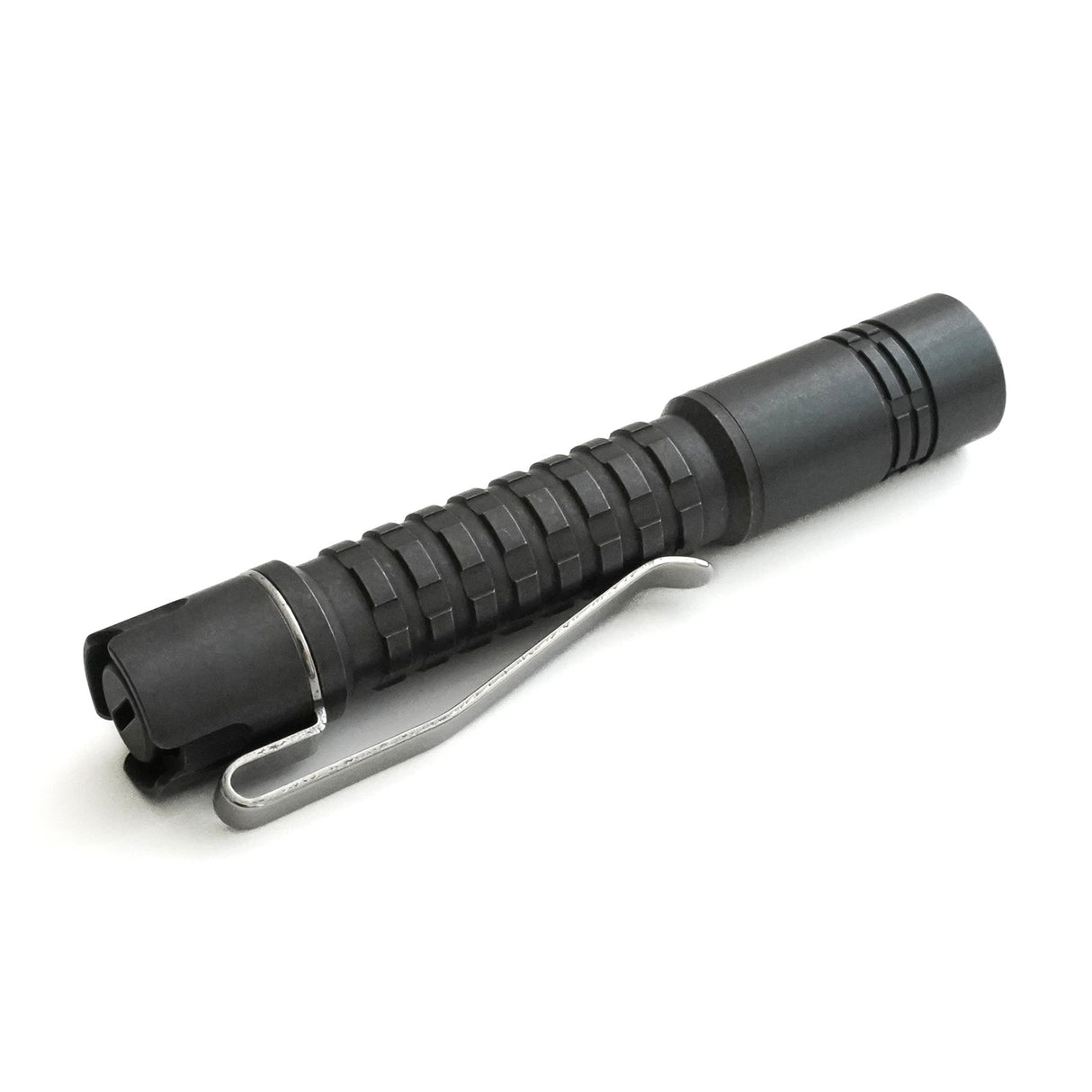

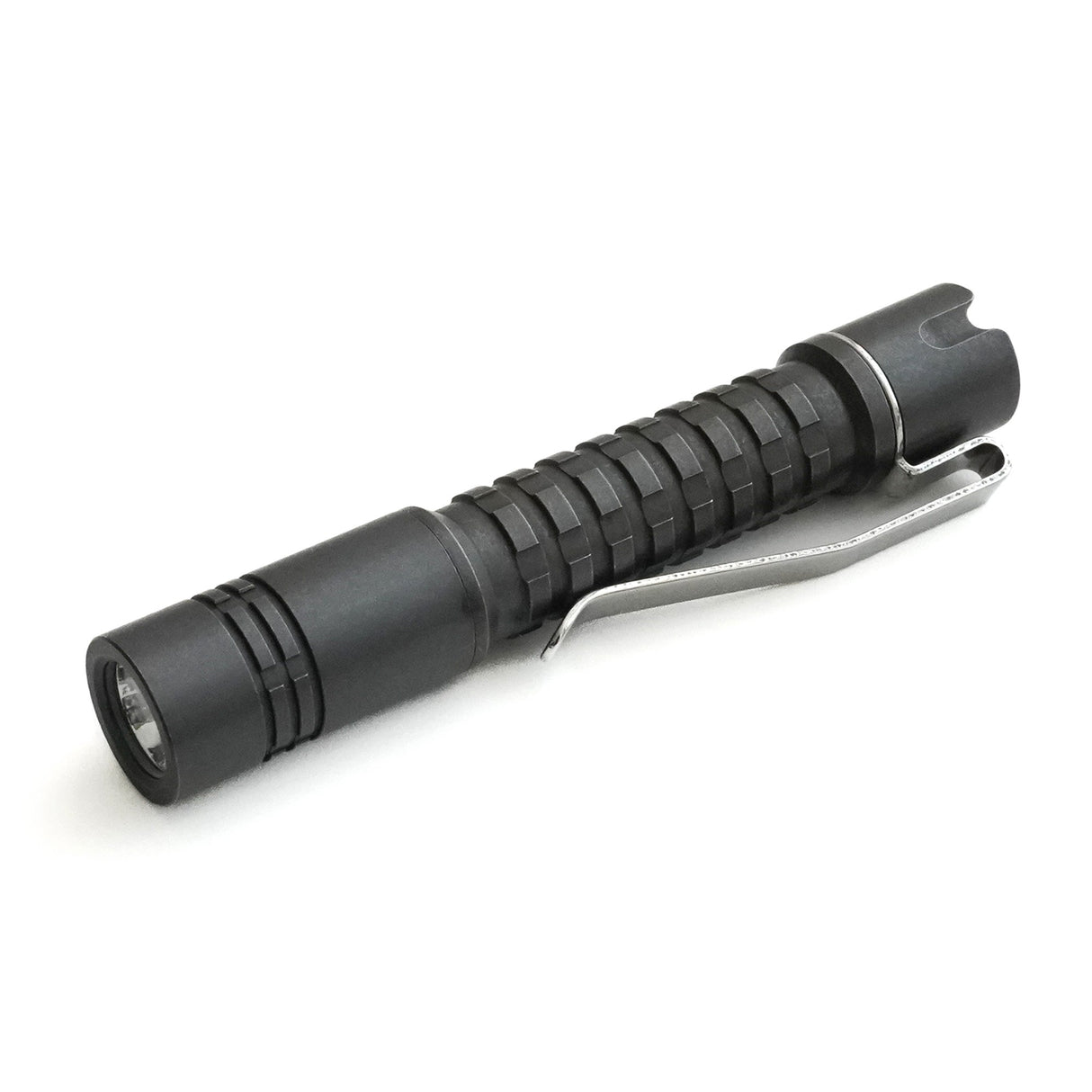

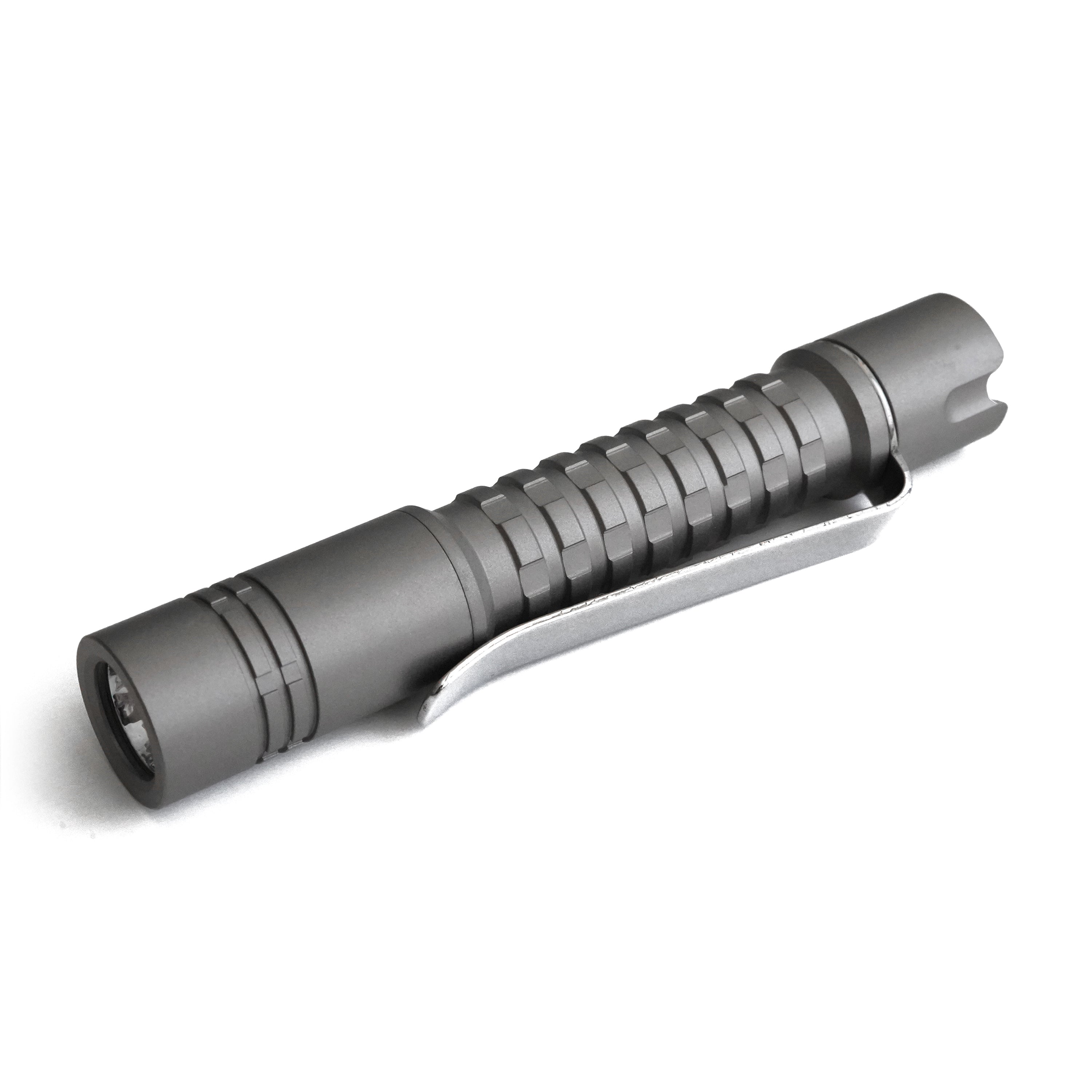

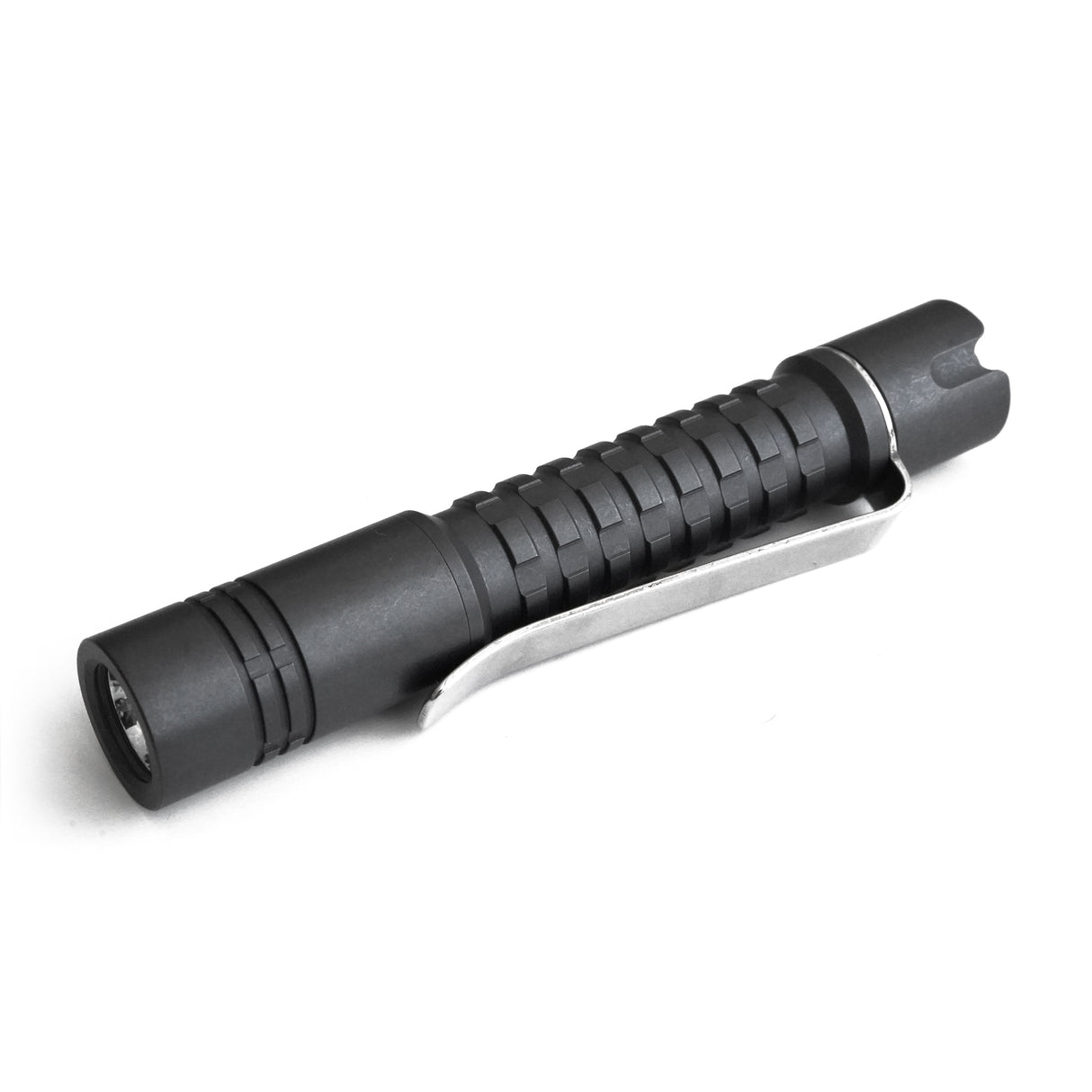

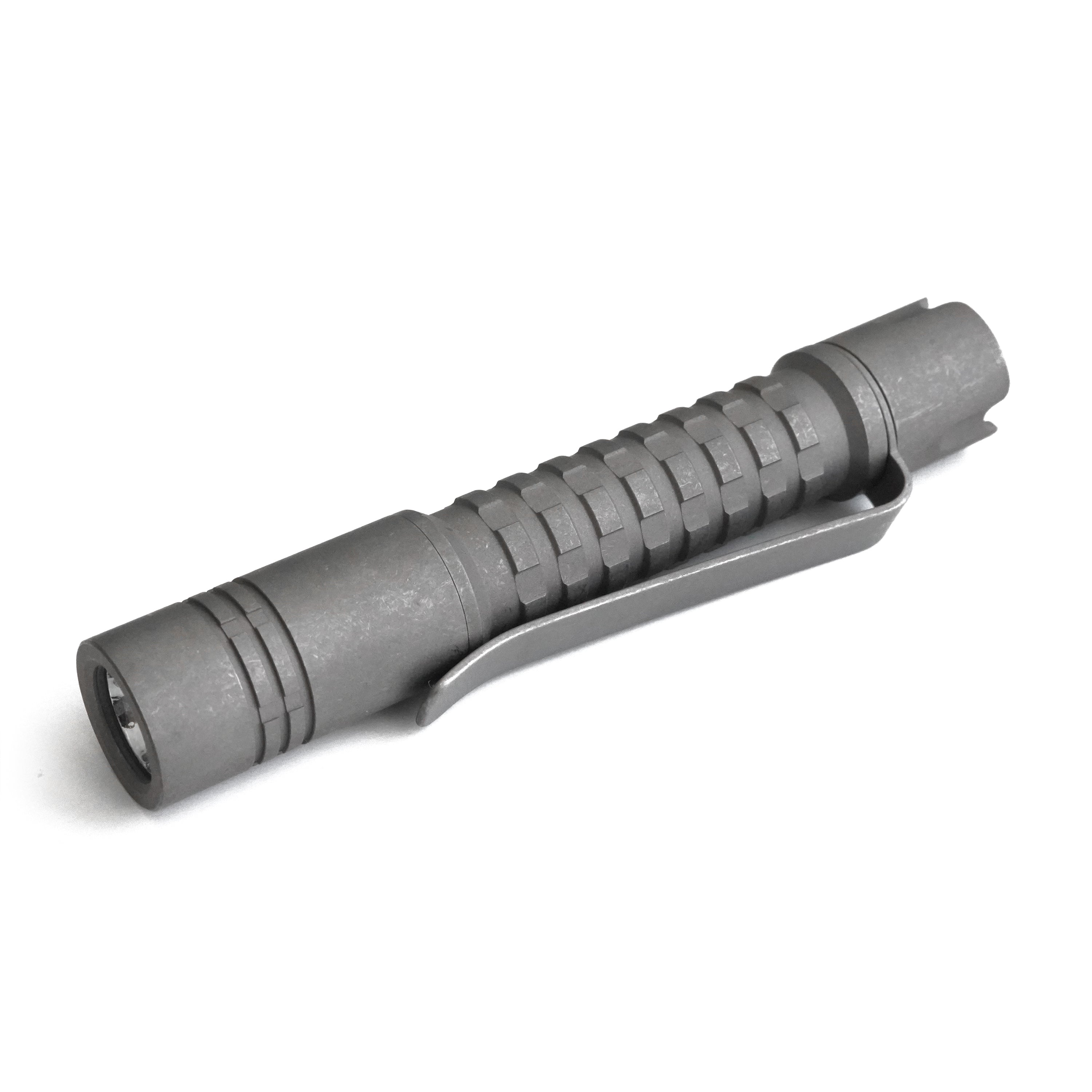

Pineapple Mini Titanium Flashlight

50
69,90 €
Finish
60 Day
Free Returns
Reliable
Service
Fast
Shipping

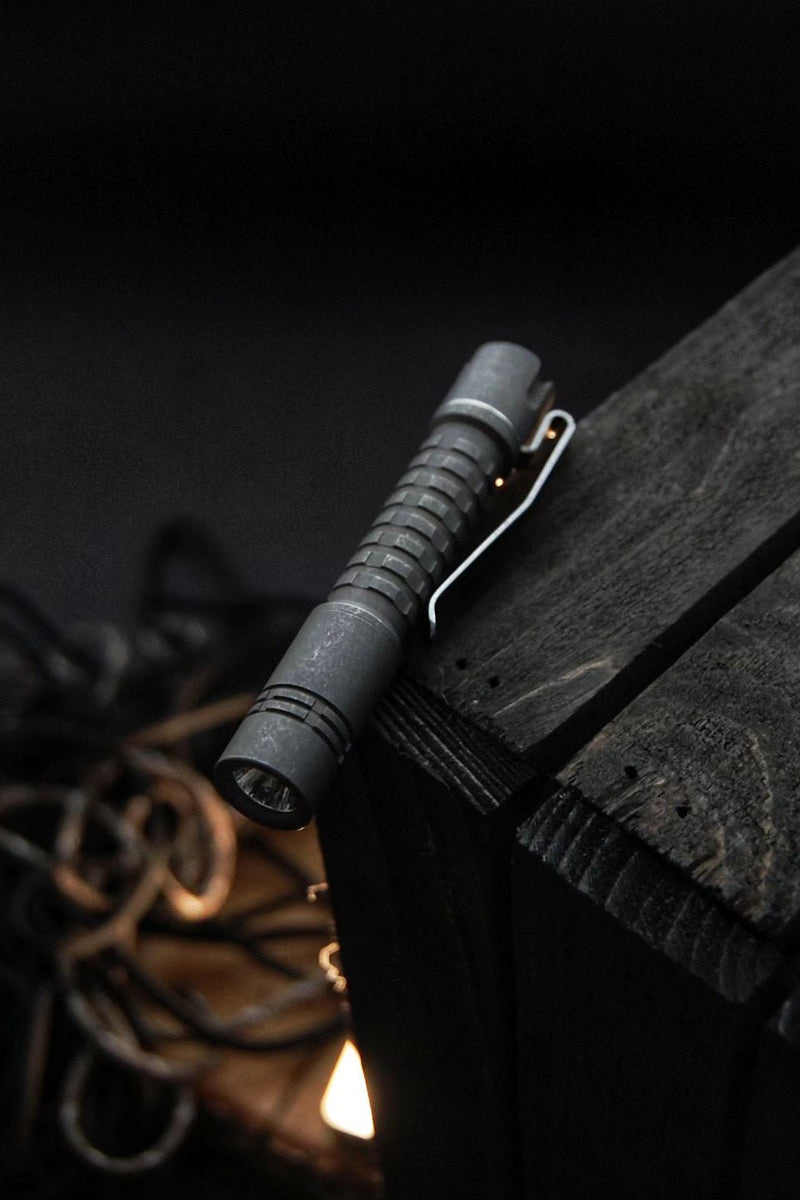

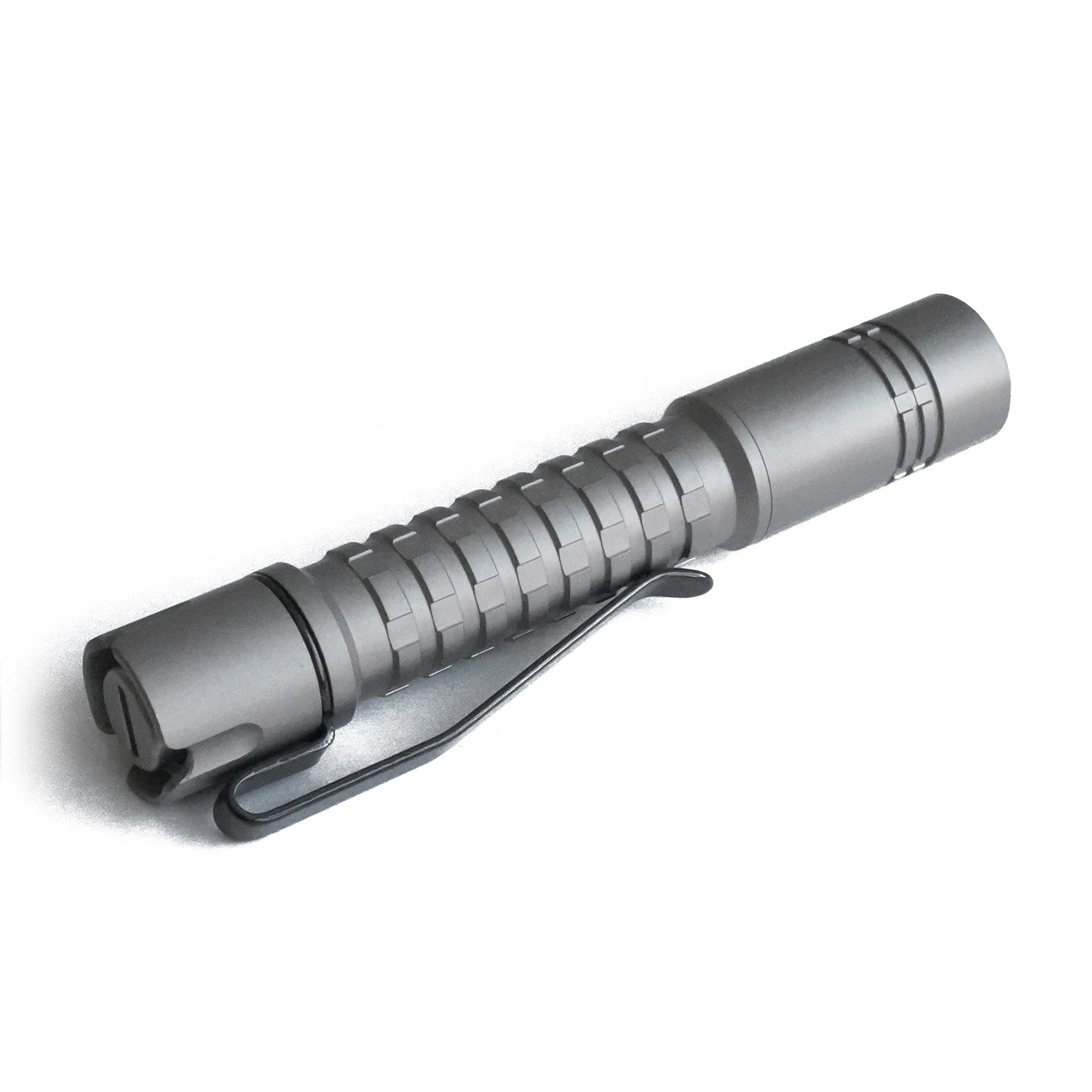

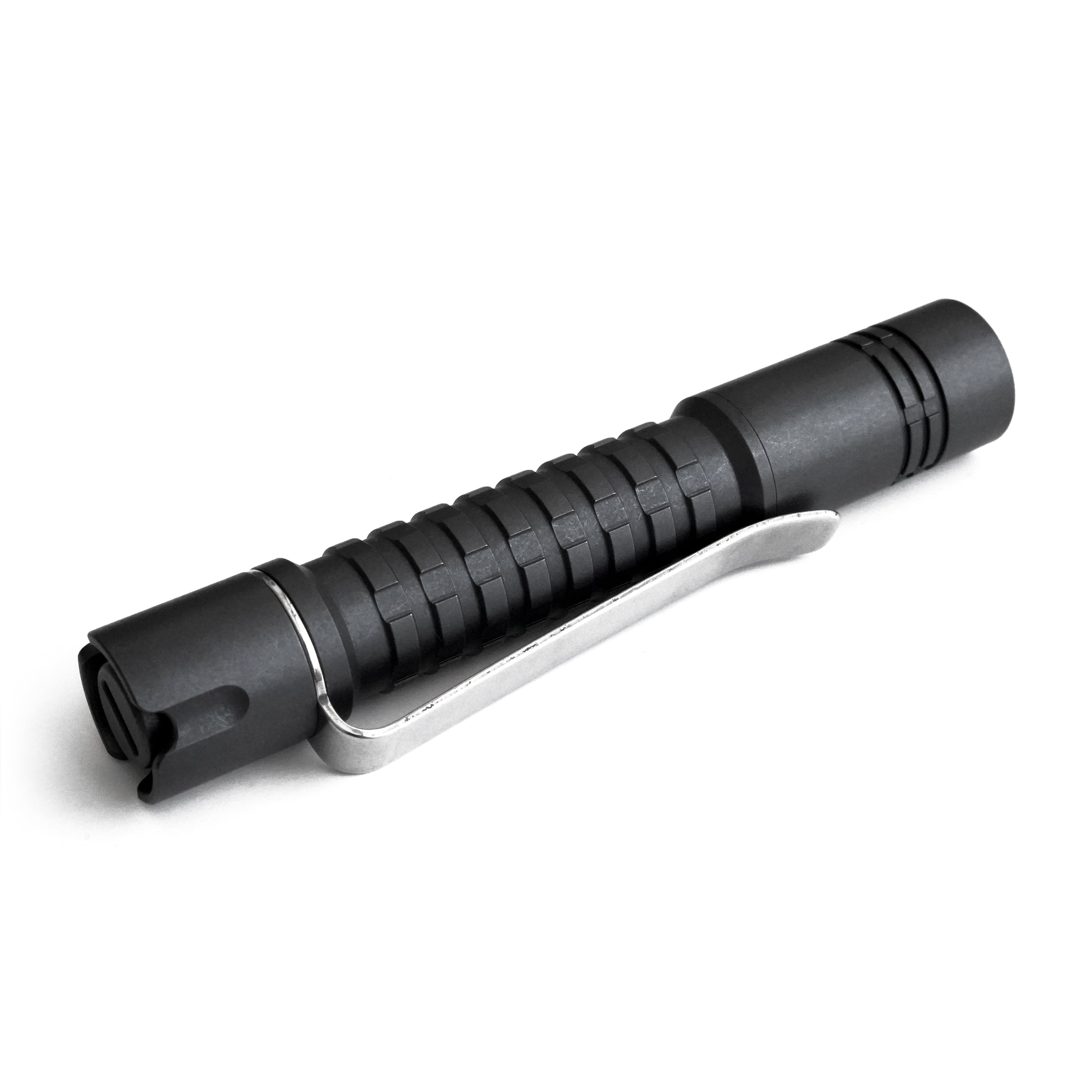

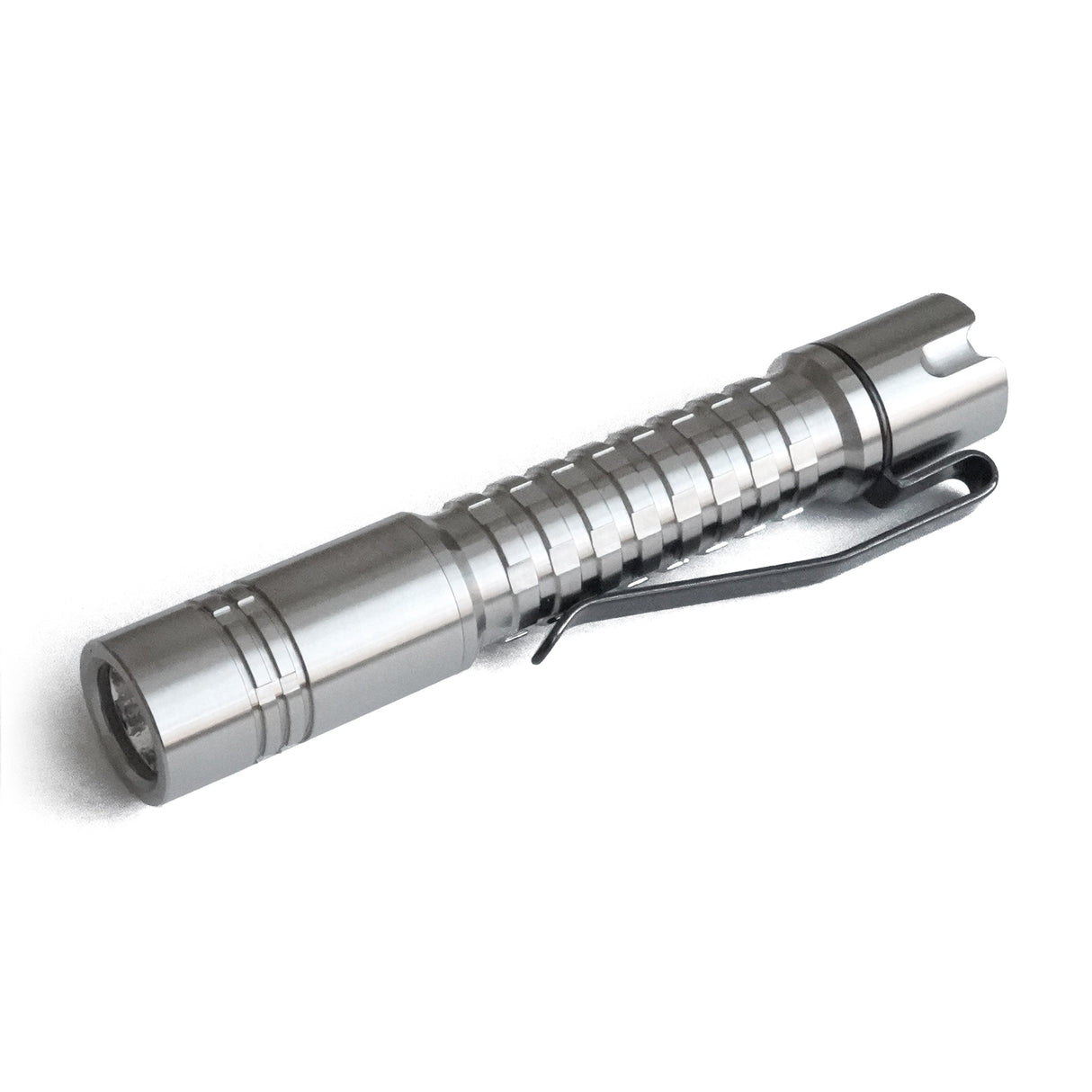

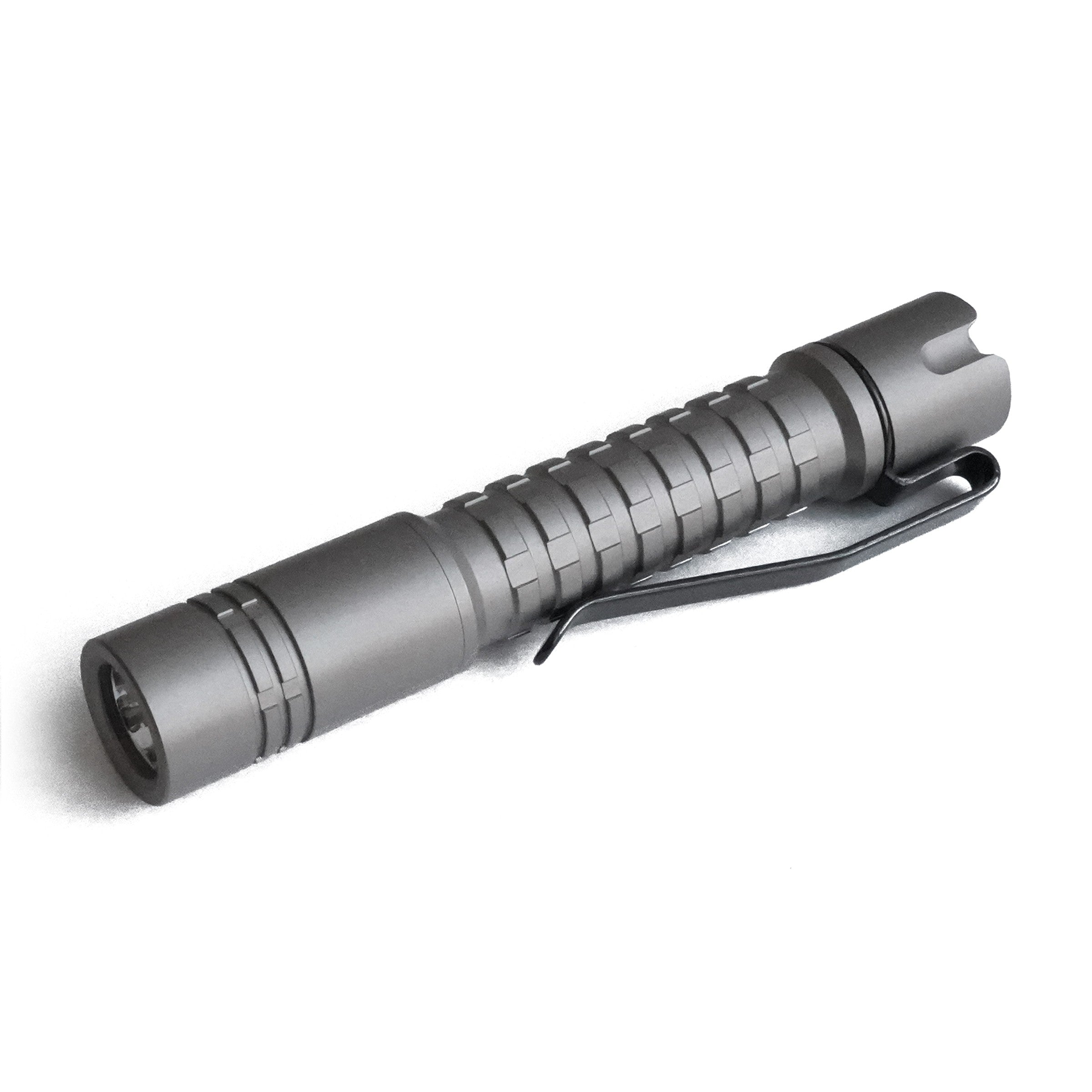

The Pineapple Mini is a flashlight that has gotten a lot of things right for EDC use. Compact size together with a proper pocket clip makes it effortless to carry around. Click switch with a simple UI makes it easy to use in different situations. Quality build and good materials ensure longevity, and all this without breaking the bank.

The light source is a Nichia 519A 4000K LED. The light ships with a rechargeable, flat top, unprotected 10440 Li-ion battery that produces max 500 lumens. This is also the recommended battery for the light, but it also works with AAA battery that produces max 90 lumens.

Reverse click switch: Full click to turn on or off, half click (tap) to cycle between modes.

The driver has battery reverse protection, high-temperature protection, and low voltage protection.

  • Compact EDC torch
  • Click switch
  • Simple UI
  • Washer included (except Black Oil) for clipless carry
  • Comes with the new tailcap installed

Data sheet

  • Battery
    Rechargeable 10440 Li-ion, flat top, unprotected (included)
  • Light source
    Nichia 519A 4000K LED
  • Material
    Titanium
  • Output
    Max 500 lumens
  • Storlek
    15 × 89 mm
  • Vikt
    32 g

Programming guide

To enter configuration mode: From ON, half-click/tap the tail switch 8+ times until it starts to flash. The number of blinks indicates the configuration option number to be changed. Half-click/tap the tail switch during any quick flashes following the blinks to select the configuration option (1-5).

1. Mode group selection

After entering this menu, you can see it blink 4 times. The number of blinks indicates the number of mode groups.

  • The 1st blink - Group1: Moonlight-2%-20%-100%
  • The 2nd blink - Group2: Moonlight-10%-40%-100%
  • The 3rd blink - Group3: Moonlight-2%-10%-50%
  • The 4th blink - Group4: Moonlight-50%-100%-strobe-SOS

Half-click/tap the tail switch during any blinks to select the mode group. After selecting the mode group, you can half-click/tap to select the brightness mode.

2. Memory mode on-off toggle (default off)

To turn memory mode on, half-click/tap the tail switch during the quick flash after the second blink.

To turn off the memory mode, reenter the configuration mode and repeat the instruction above.

3. Moonlight mode off-on toggle (default on)

To turn the moonlight off, half-click/tap the tail switch during the quick flash after the third blink.

Repeat to turn the moonlight on.

4. Mode order toggle (default LMH)

To change the mode order from Low Medium High to High Medium Low, half-click/tap the tail switch during the quick flash after the fourth blink.

Repeat to reverse the order.

For example, the default mode order of group 1 is (Moonlight)-2%-20%-100%, if you change the mode group to HML, the mode ORDER of group 1 will be (Moonlight)-100%-20%-2%

5. Factory reset

Half-click/tap the tail switch during the quick flash after the fifth blink to reset all options to their original states.
